Elite

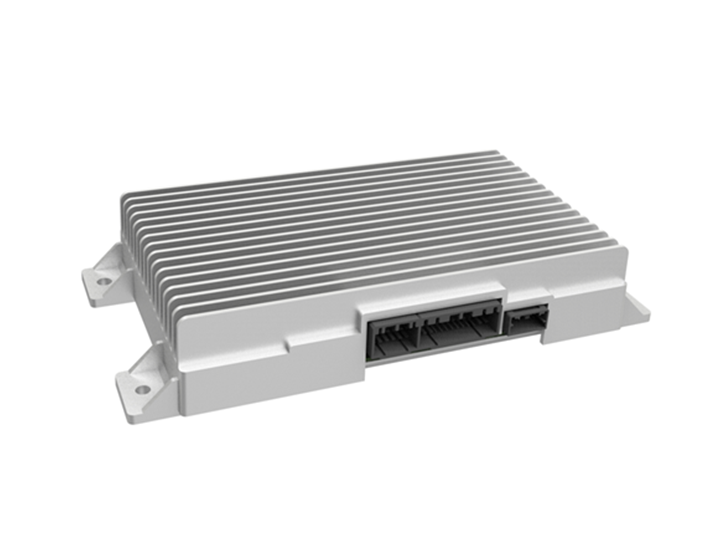

The in-vehicle digital power amplifier (amplifier) is a core component of the audio system. It efficiently amplifies weak audio electrical signals through built-in professional DSP processing chips and multi-channel power amplification chips, and drives multiple speakers to produce sound simultaneously.

Features

  • DSP ：Sigma DSP 290HZ

  • Voltage: 9-36V

  • A2B communication

  • Number of channels: 4/6/8/12

  • Rated power: 300W

  • Maximum power: 500W

  • Sound effect: Full vehicle, Surround, Driver's seat, VIP seat

  • CAN FD/CAN Diagnostics

  • CAN/OTA upgrade

  • Other functions: EQ settings, volume adjustment with speed

  • Reserved active noise cancellation (engine)

Performance Parameters

Volume

140*110*40

Operating voltage

9-36V

Amplifier chip

Class D amplifier

Static current

<0.3mA

Signal-to-noise ratio

≥82db

Start time

≤3S

THD

≤0.1% @1KHZ 1W  4Ω

Frequency response

20Hz~20000Hz(±3dB)

Rated power

300W

Maximum power

500W

Output channel

4-12ch

Channel separation

≥60db

background noise

≤150uv

Diagnosis

Overvoltage, undervoltage, short circuit
