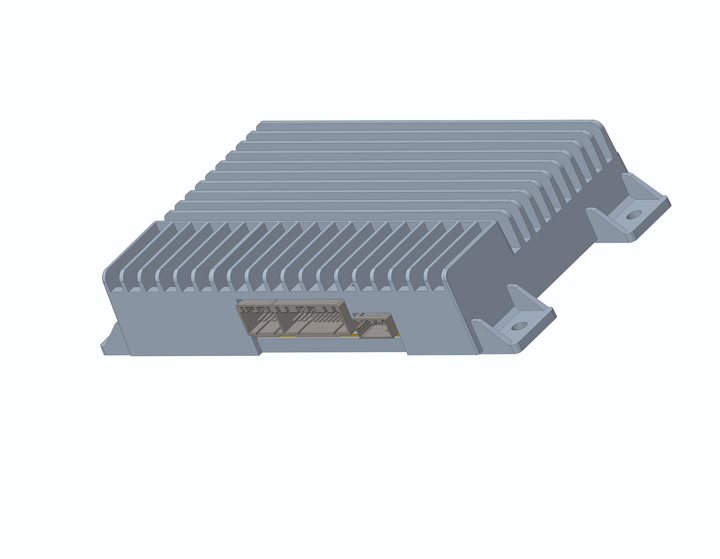

Flagship Edition

The in-car digital power amplifier (amp) is a core component of the audio system. Equipped with built-in professional DSP processing chips and multi-channel power amplification chips, it efficiently amplifies weak audio electrical signals and drives multiple speakers to produce sound simultaneously. Additionally, the DSP chip supports various audio

Features

  • DSP： Sharc DSP 21565 1GHz

  • Voltage: 9-16V

  • A2B Communication

  • Number of channels: /8/12/16/24

  • Rated power: 500W

  • Maximum power: 1000W

  • Sound effect: Full vehicle, Surround, Driver's seat, VIP position

  • CAN FD/CAN diagnosis

  • CAN/OTA update

  • Information Security

  • Functional Safety

  • Other functions: EQ settings, volume adjusts with speed

  • Active Noise Cancellation (Engine\RNC)

  • Supports microphone input

  • Ambient light interface

Performance Parameters

Volume

180*190*50

Operating voltage

9-16V

power amplifier chip

Class D Amplifier & Class AB Amplifier

static current

<0.2mA

Signal-to-noise ratio

≥85db

Start time

≤3S

THD

≤0.1% @1KHZ 1W  4Ω

Frequency response

20Hz~20000Hz(±3dB)

Rated power

480W

Maximum power

900W
Output channel12-20ch

Channel separation

≥60db

background noise

≤100uv

Diagnosis


Overvoltage, undervoltage, short circuit, short circuit
