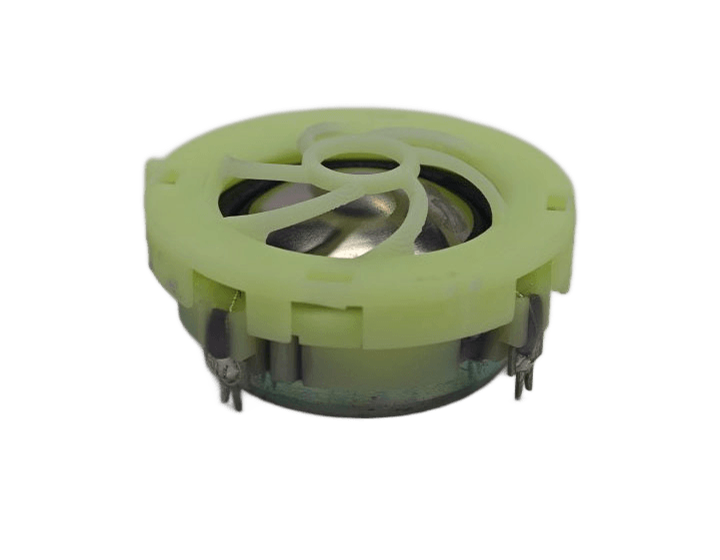

1-inch Tweeter
Performance Parameters
Technical Specifications | SPK | Nominal Impedance(ACR) | 4Ω±20%，@4000 Hz |
Direct Current Resistance (RE) | 3.6Ω±15% | ||
Resonance Frequency (F0) | 1300Hz±20% | ||
Sensitivity (SPL) | 88dB±3dB， 1W/1m @10kHz、12kHz、15kHz、18kHz AVE | ||
Frequency Response (FR) | F0~20kHz | ||
Rated Power (Po) | 20W | ||
Transient Maximum Power (Pmax) | 40W | ||
| Transient Maximum Power (Pmax) | ≤2%，1W/1m @1.5F0~20kHz | ||
Weight | 80±10%g | ||
Pure tone audiometry | Loudspeaker Pure Tone | 3.87V 1kHz ~20kHz,3 cycles, single frequency-sweeping time:2s, 30 cm from the human ear |
