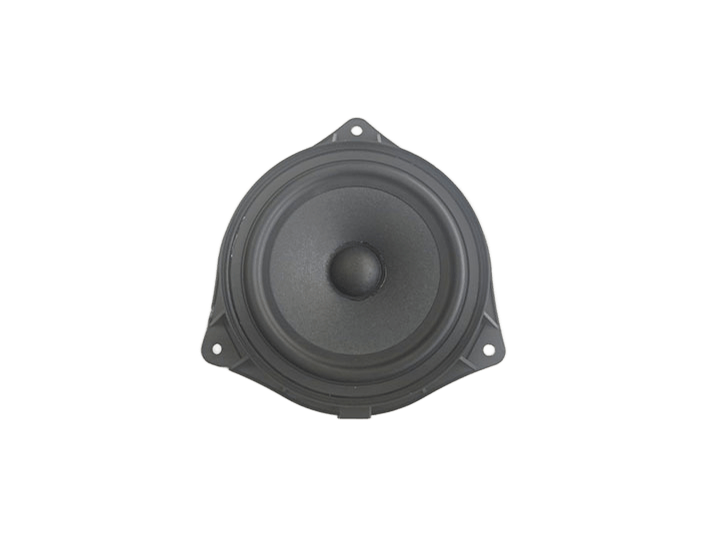

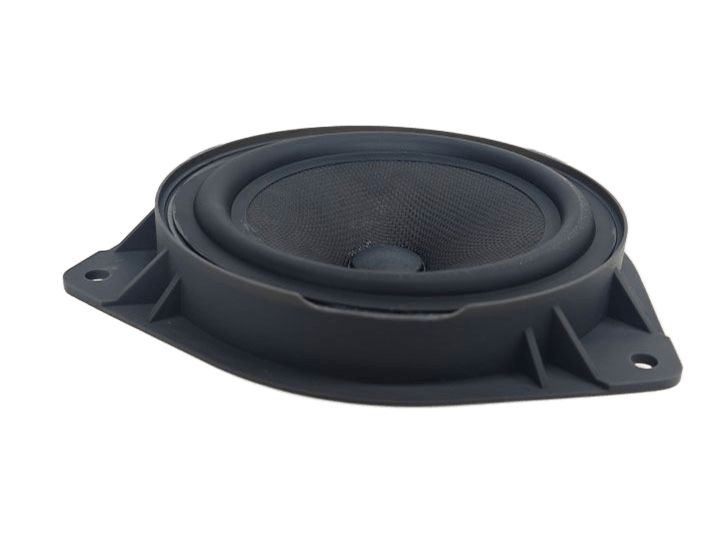

6.5-inch Rear Door Woofer
Performance Parameters
Technical Specifications | SPK | Nominal Impedance(ACR) | 4Ω±20%，@200Hz |
Direct Current Resistance (RE) | 3.4Ω±15% | ||
Resonance Frequency (F0) | 65Hz±20% | ||
Sensitivity (SPL) | 86dB±3dB， 1W/1m @300Hz、400Hz、500Hz、600Hz AVE | ||
Frequency Response (FR) | F0~10kHz | ||
Rated Power (Po) | 25W | ||
Transient Maximum Power (Pmax) | 50W | ||
| Transient Maximum Power (Pmax) | ≤2%，1W/1m @1.5F0~20kHz | ||
Weight | 300±10%g | ||
Pure tone audiometry | Loudspeaker Pure Tone | 5V, 40Hz~20kHz,3 cycles, single frequency-sweeping time:2s, 30 cm from the human ear |
