GTA3526BA-2-GETTOP

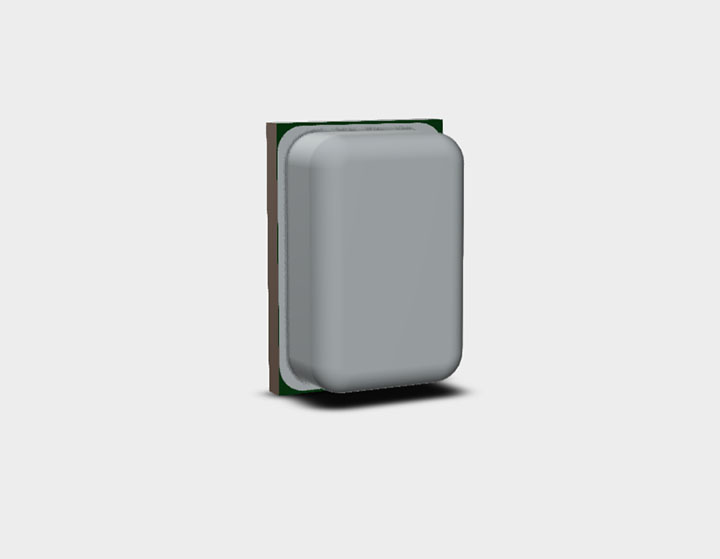

The GTA3562BA-2 is a small package, high SNR and analog output bottom port MEMS microphone, consists of a MEMS sensor and a low noise level ASIC.

Features

Performance Parameters

Parameter	Symbol	Condition	Min	Nom.	Max	Unit
Sensitivity	S	f=1kHz, Pin=1Pa, 0dB=1V/Pa	-39	-38	-37	dB
Operating Voltage	V_DD		1.6	2	3.6	V
Directivity			Omni-directional
Polarity		Sound pressure increase	Output voltage increase
Sensitivity vs. Voltage	ΔS	Vs= 3.6V to 1.6V	＜0.5			dB
Output Impedance	Z_OUT	f=1kHz			400	Ω
Current Consumption	I	2.3 V to 3.6V		120	200	µA
S/N Ratio	S/N	20-5KHz Bandwidth, A Weighted		68		dBA
		20-8KHz Bandwidth, A Weighted		67		dBA
		20-20KHz Bandwidth, A Weighted		66		dBA
Total Harmonic Distortion	THD	94dB SPL @1KHz		0.05	0.5	%
Total Harmonic Distortion	THD	122dBSPL @1KHz		1		%
Acoustic Overload Point	AOP	THD 10%@1KHz		127		dBSPL
Power Supply Rejection	PSR	100mVpp Square wave @217Hz, A-weighted		-104	-90	dB
Power Supply Rejection Ratio	PSRR	200mVpp Sinewave @1KHz	60	73		dB
DC output	VDC			0.85		V
Low Frequency Roll Off	LFRO				20	Hz
Output load	C_load				100	pF
Output load	R_load		8			KΩ
Note：Frequency response, sensitivity and current consumption are tested by 100% on product line.
