  • underlay image _0045_GTD4030TF.igs.jpg

  • MEMS

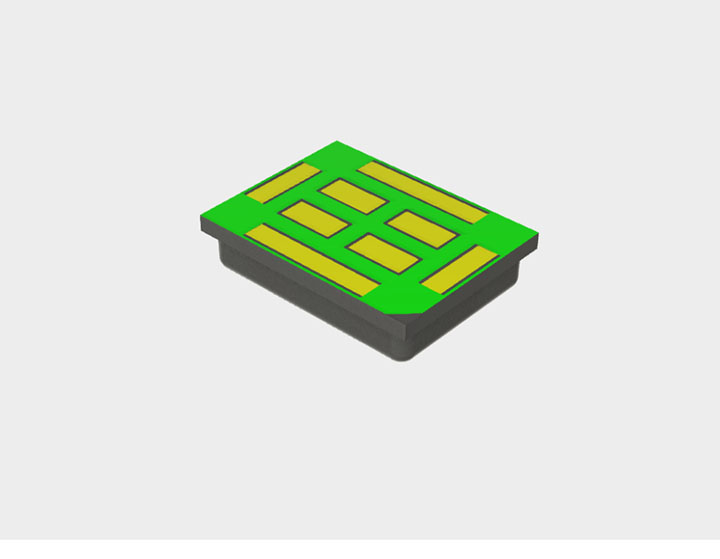

GTD4030TF

The GTD4030TF is a small package, high SNR and Multimode top port digital MEMS microphone with 1-bit PDM output, consists of a MEMS sensor, a low noise level amplifier, and a ∑- modulator.

Features

  • 4.0x3.0x1.0mm Top Port

  • 1-bit PDM Output

  • Narrow Sensitivity +/-1dBFS

  • High SNR

  • Flat Frequency Performance

  • Multi Mode(Sleep, Low power, Normal)

  • Compatible with Standard SMD Reflow Technology

  • RoHS Compliance & Halogen Free

Performance Parameters

Symbol
Dtion
Min
Nom.
MaxUnit
FCLKClock Frequency1.32.44.8MHz
IDDSupply Current1
770900uA
SSensitivity3,94dBSPL@1KHz-27-26-25dBFS2
ΔSSensitivity<0.5dBFS
SNR20-5KHz Bandwidth, A-Weighted
68
dB(A)
20-8KHz Bandwidth, A-Weighted
67
dB(A)
20-20KHz Bandwidth, A-weighted6365
dB(A)
THD94dB SPL @1KHz
0.250.5%
AOP10%THD@1KHz
121
dBSPL
PSRMeasured with 217Hz,100mVpp squarewave

-75dBFS
Note：Frequency response, sensitivity and current consumption are tested by 100% on product line.
