MA-FRA381-A13-8
Features
-

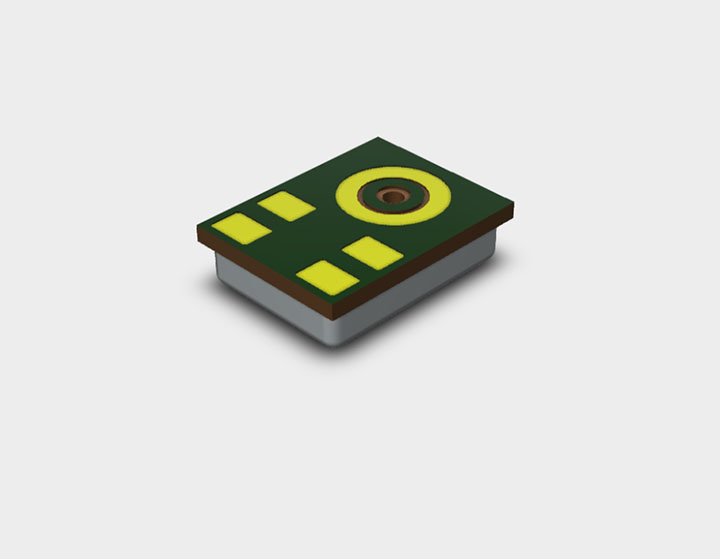

2.75x1.85x1.1mm Bottom Port
-
Single Ended Output
-
High SNR
-
Narrow Sensitivity +/-1dB
-
RF Shielded
-
Compatible with Standard SMD Reflow Technology
-
RoHSCompliance&Halogen Free
Performance Parameters
| Parameter | Symbol | Condition | Min | Nom. | Max | Unit |
| Sensitivity | S | f=1kHz, Pin=1Pa, 0dB=1V/Pa | -39 | -38 | -37 | dB |
| Operating Voltage | VDD | 2.4 | 2.75 | 3.3 | V | |
| Directivity | Omni-directional | |||||
| Polarity | Sound pressure increase | Output voltage increase | ||||
| Sensitivity vs. Voltage | ΔS | Vs= 3.3V to 2.4V | 0.5 | dB | ||
| Output Impedance | ZOUT | f=1kHz | 400 | Ω | ||
| Current Consumption1 | I | 2.4 V to 3.3V | 125 | 200 | µA | |
| S/N Ratio | S/N | f=1kHz, BW=20-5kHz, A-Weighted | 69 | dBA | ||
| f=1kHz, BW=20-8kHz, A-Weighted | 68 | dBA | ||||
| =1kHz, BW=20-20kHz, A-Weighted | 67 | dBA | ||||
| Total Harmonic Distortion | THD | 94dB SPL @1KHz | 0.11 | 0.5 | % | |
| Total Harmonic Distortion | THD | 125dBSPL @1KHz | 1 | % | ||
| Acoustic Overload Poin | AOP | THD 10%@1KHz | 130 | dBSPL | ||
| Power Supply Rejection | PSR | 100mVpp Squarewave @217Hz, A-weighted | -95 | dB | ||
| Power Supply Rejection Ratio | PSRR | 200mVpp Sinewave @1KHz | 60 | dB | ||
| DC output | VDC | 1.3 | V | |||
| Output load | Cload | 150 | pF | |||
| Output load | Rload | 0.01 | 10 | KΩ | ||
| Note：Frequency response, sensitivity and current consumption are tested by 100% on product line. | ||||||
