BOM6027FL-Q393ALC
Features
-

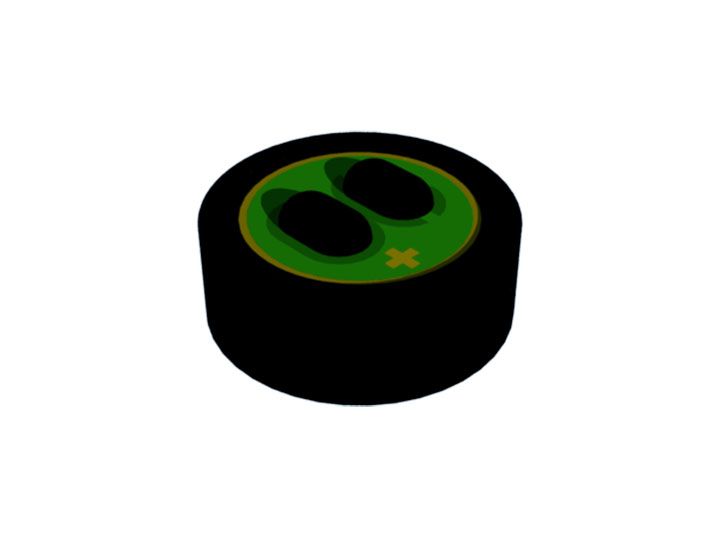

φ6.0×2.7mm Omnidirectional Microphone
-
Sensitivity: -39±3dB
-
Signal-to-Noise Ratio (SNR): type.74dB
-
Wire-soldered product
-
RoHSCompliance
Performance Parameters
| No. | Parameter | Symbol | Condition | Limits | Unit | ||
| Min | Nom. | Max | |||||
| 3.1 | Sensitivity | S | f=1kHz, Pin=1Pa, 0dB=1V/Pa | -42 | -39 | -36 | dB |
| 3.2 | Directivity | Omni-directional | |||||
| 3.3 | Output Impedance | ZOUT | f=1kHz | 500 | Ω | ||
| 3.4 | Current Consumption | IDSS | RL=5.6kΩ, Vs=3.0V | 500 | µA | ||
| 3.5 | S/N Ratio | S/N | f=1kHz, Pin=1Pa, (A-Weighted) | 74 | dB | ||
| 3.6 | Operating Voltage | Vmic | 2.5 | 3 | 5 | V | |
| 3.7 | Sensitivity vs. Voltage | ΔS | Vs= 2.0V to 1.5V | 3 | dB | ||
| 3.8 | Acoustic Overload Point | AOP | THD 1%@1KHz | 120 | dBSPL | ||
| THD 10%@1KHz | 133 | dBSPL | |||||
| Note：Considering tester and testing difference between each other, sensitivity 0.5 dB out of specification will be acceptable by customer for an acceptance. | |||||||
应用实例
-
头戴耳机
