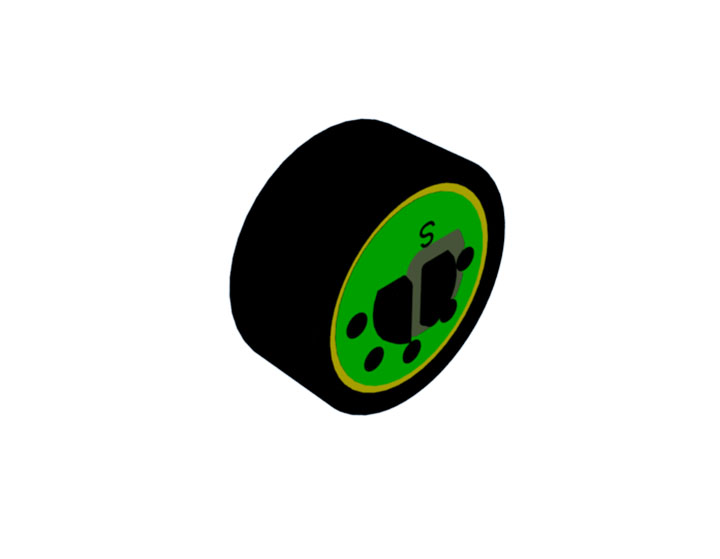

BUM1045L-N343R-HF
Features
-
φ10.0×4.5mm Uni-directional Microphone
-
Sensitivity: -34±3dB
-
Signal-to-Noise Ratio (SNR): type.73dB
-
Wire-soldered product
-
RoHS Compliance
Performance Parameters
| Parameter | Symbol | Condition | Limits | Unit | ||
| Min | Nom. | Max | ||||
| Sensitivity | S | f=1kHz, Pin=1Pa, 0dB=1V/Pa | -37 | -34 | -31 | dB |
| Directivity | Uni-directional | |||||
| Output Impedance | ZOUT | f=1kHz | 2.0 | kΩ | ||
| Current Consumption | IDSS | RL=2.2kΩ, Vs=2.0V | 500 | µA | ||
| S/N Ratio | S/N | f=1kHz, Pin=1Pa, (A-Weighted) | 73 | dB | ||
| Operating Voltage | Vmic | 1.0 | 5 | V | ||
| Sensitivity vs. Voltage | ΔS | Vs= 2.0V to 1.5V | 3 | dB | ||
| Total Harmonic Distortion | THD | 94dB SPL at 1kHz | 1 | % | ||
| Acoustic Overload Point | AOP | THD 10%@1KHz | 121 | dBSPL | ||
| Note：Considering tester and testing difference between each other, sensitivity 0.5 dB out of specification will be acceptable by customer for an acceptance. | ||||||
