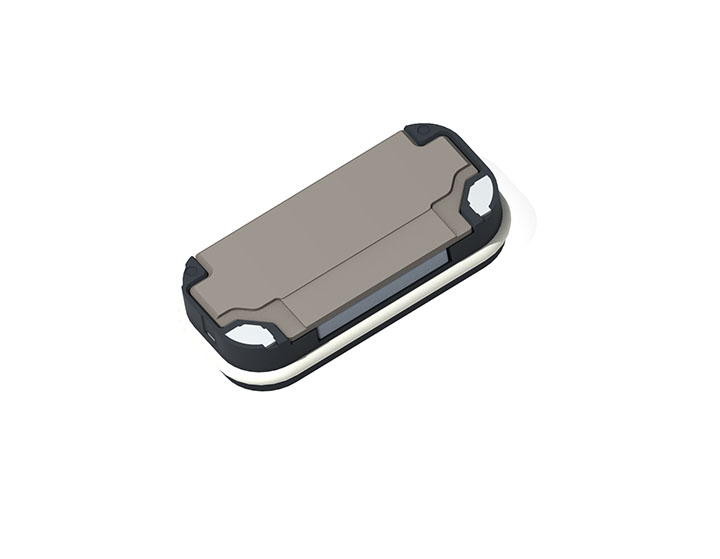

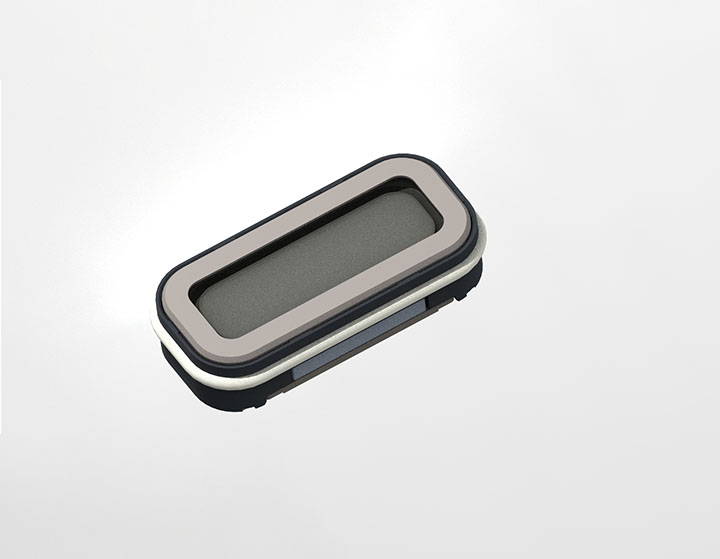

SR140730PA_1.0

5ATM waterproof SPK

Features

  • High extension membrane

  • O ring sealing, 5ATM waterproof

  • For smart watch

Performance Parameters

Impedance 8±15%ohm
Sensitivity1

  85±3dB

（  @2kHz, 2Vrms,10cm, 3cc box, with baffle）

 Rated Power  0.5W
 Maximum power 0.7W
 Resonance Frequency950±20%Hz
