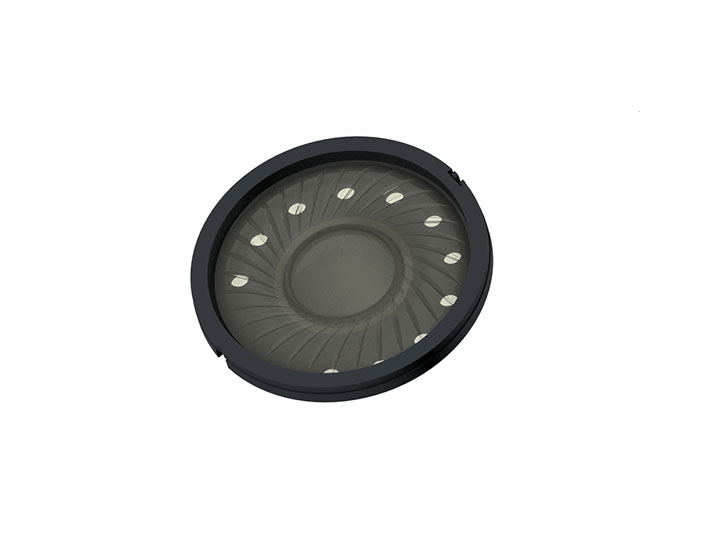

  • underlay image _0091_SC360090PA_36mm-TOP.jpg

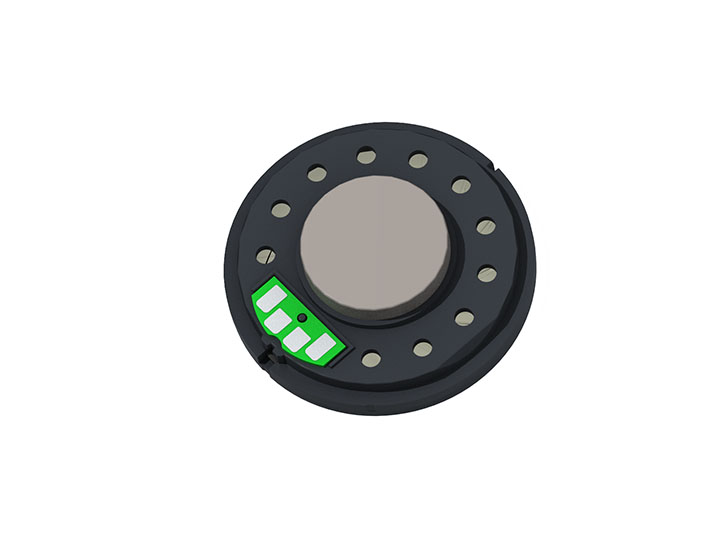

  • underlay image _0092_SC360090PA_36mm-BOT.jpg

36mm_SC360090PA

Automotive applicable SPK

Features

  • High SPL

  • Automotive applicable

  • High power

  • For Automotive panel SPK

Performance Parameters

Impedance

8±20%ohm

Sensitivity1

 83.5±3dB

（ At 0.8k 1.0k 1.5k 2.0kHz in 1W/1m average (0dB SPL=20μPa) with baffle）

Sensitivity2 81±3dB（ At 500Hz in 1W/1m with baffle）
 Sensitivity3

 83.5±3dB（ At 1000Hz in 1W/1m with baffle）

 Rated Power

1.5w

Maximum power

2W

Resonance Frequency

700±20%Hz
