Intelligent Technology Solutions

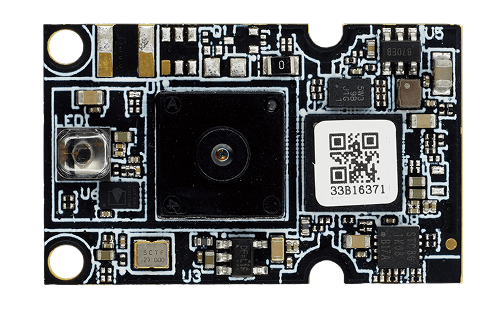

Based on Time-of-Flight (ToF) technology, the product measures the flight time of lasers to calculate the distance between drones/robots and the ground or obstacles, thereby enabling altitude hold for drones and obstacle avoidance for robots.

Solution Features
Solution Principles
Scenario Introduction
Product Specifications
Typical Applications
The following Customers have chosen to cooperate with Gettop

Solution Features

High Precision
Fast Response Time
Low Power Consumption
System Cost Advantage

Solution Principles

3D ToF Ranging Block Diagram

Time-of-Flight (ToF) Ranging Technology

The Time-of-Flight (ToF) ranging technology is a literal translation of "Time of Flight", abbreviated as ToF. Its basic principle is to continuously emit light pulses (usually invisible light) to the observed object, then receive the light pulses reflected back from the object, and calculate the distance between the measured object and the sensor by detecting the flight (round-trip) time of the light pulses.
Advanced Treatment

3D ranging refers to the ability to detect a large number of pixels; after calculation, the output distance value is called depth.
Algorithm Application

After the customer's backend processing chip receives the depth data, it converts it into a 3D point cloud. Using different algorithms, various applications (such as drone altitude hold) can be realized.
VCSEL Surface Laser Light Source

VCSEL is a type of laser. As a surface-emitting device, it is similar to a flashlight and typically operates in the infrared band, which is invisible to the human eye. A dedicated VCSEL driver chip is required for its operation.

Scenario Introduction

Robots

Robots Related products

ToF Sensor

The ToF Sensor is the core component of the receiving part of the ToF system. Sensor chips of various specifications are available to meet different application requirements.

Learn More
VCSEL Driver

The VCSEL Driver is the core component of the transmitting part of the ToF system. It amplifies the power of the high-speed shutter pulses output by the Sensor to drive the VCSEL laser, and provides multiple protection mechanisms to ensure reliable system operation and human eye safety.

Learn More
ISP Chip

The ISP Chip receives the raw data generated by the ToF Sensor and calculates depth and other information in real time by means of an on-chip low-power, high-performance computing engine. Compared with the traditional solution that relies on external computing power for depth calculation, it simplifies ToF depth computation and significantly reduces the difficulty of user development. Meanwhile, the ISP Chip has a built-in ARM Cortex-M3 core, providing flexibility for implementing customized algorithms for customers.

Learn More
