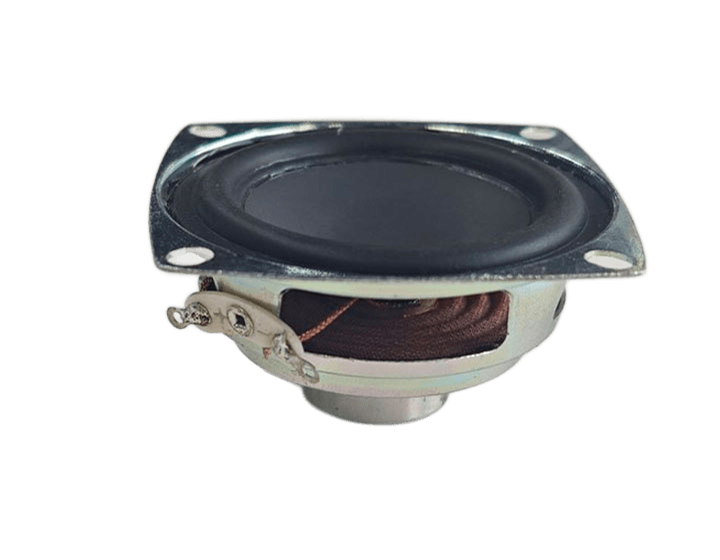

4-inch AVAS Speaker without Box
Performance Parameters
Technical Specifications | SPK | Nominal Impedance(ACR) | 4Ω±20%，@1000 Hz |
Direct Current Resistance (RE) | 3.7Ω±15% | ||
Resonance Frequency (F0) | 100Hz±20%，@1.0V for meter | ||
Sensitivity (SPL) | 86dB±2dB， 1W/1m @600Hz、800Hz、1kHz、1.2kHz AVE | ||
Frequency Response (FR) | F0~10kHz | ||
Rated Power (Po) | 15W | ||
Transient Maximum Power (Pmax) | 30W | ||
| Total Harmonics Distortion | ≤3%，1W/1m @1.5F0~20kHz | ||
Weight | 240g±10% | ||
Pure tone audiometry | Loudspeaker Pure Tone | 8.94V, 100Hz~2kHz,3 cycles, single frequency-sweeping time:2s, 30 cm from the human ear |
