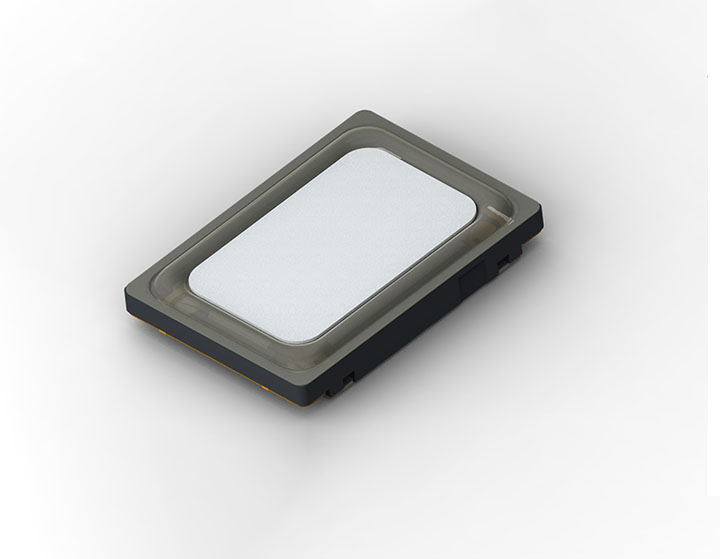

  • underlay image _0099_SAS171223PAXX-TOP.jpg

SAS171223PA

High SPL SPK

Features

  • High input power, high SPL

  • Signal magnet

  • Xmax：0.4mm

  • For smart phone and Tablet

Performance Parameters

Impedance 8±15%ohm
Sensitivity1

 97±3dB

（  3.7vrms, 2kHz in 0.8cc back case 10cm baffle）

Sensitivity2

 84±3dB

（  3.7vrms, 500Hz in 0.8cc back case 10cm baffle）

 Rated Power  1.7W
 Maximum power2.5W
 Resonance Frequency1010±10%Hz
